PP-R Water Pipe and Fittings
PP-R Water Pipe and Fittings
Material: Random Polypropylene

Size: full 16mm through 160mm availability

Pressure Rating: 1.25MPa, 1.6MPa, 2.0MPa,2.5MPa

Standard: ISO 15874-2, EN ISO 15874-2,W270, BS EN ISO 15874-2, BS 6920, DIN8077, DIN 8078, GB/T 18742-2

Colors:

• Light grey or white, pipe for cold water is marked with blue stripes, pipe for hot water is marked with red stripes

• Other colors are also available upon request

Form Supplied:

• 4 meters straight length (all size)

• 50 or 100 meters coil length (dn16-dn32)

• Other forms are also available upon request

Advantages
Applications
◎ High Temperature Resistance: the maximum sustained working temperature is up to 70℃, the maximum transient temperature is up to 95℃ ◎ Heat Preservation: low thermal conductivity result in preserving heat ◎ Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium ◎ Low Installation Costs: light weight and ease of installation can reduce installation costs ◎ High Flow Capacity: smooth interior walls result in low pressure loss and high volume ◎ Longevity: more than 50 years under proper use



Advantages



■ High Temperature Resistance: the maximum sustained working temperature is up to 70°C, the maximum transient temperature is up to 95°C.

■ Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.

■ Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium.

■ Corrosion Resistance: resist chemical matters and electron chemical corrosion.

■ High Flow Capacity: smooth interior walls and low friction result in low flow resistance and high volume.

■ Excellent Flexibility: can be supplied in coil.

■ Low Installation Costs: light weight and ease of installation can reduce installation costs

■ Longevity: more than 50 years under proper use © Recycled and Environment-friendly








Applications



■  Cold and hot water supply

■  Heating system including flooring heating, wall heating and radiant system

■  Central air conditioning system

■  Industrial liquids transportation

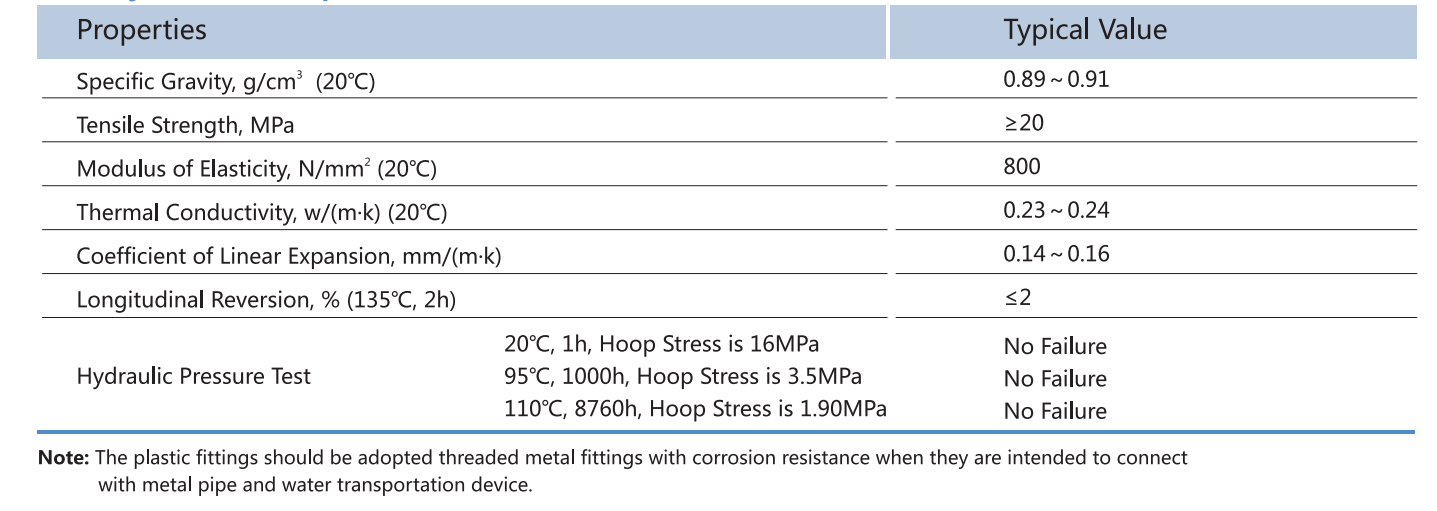

Physical Properties



PP-R Water Pipe and Fittings Physical Properties
